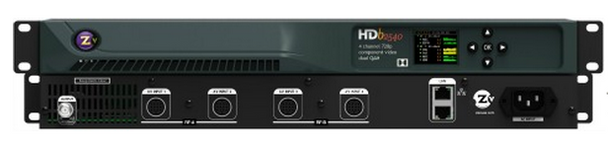

ZeeVee HDb2540 4 Channel HDbridge 2000 Series Encoder Modulator 720p

$3,499.00 (You save $228.00)
SKU: HDb2540
In Stock
10.00 LBS
Free Shipping on $49 Order!
$3.99 on other US orders*
  • Buy 2 - 4 and get 10% off
  • Buy 5 - 9 and get 15% off
  • Buy 10 or above and get 20% off

HDbridge 2000 Series encoder / modulators are designed especially for high channel density environments where rapid deployment, advanced management and compatibility are critical - you can practically feel the confidence that's built into every unit!

The Zeevee HDb2540 is a encoder/modulator that features 2 channels of 720P component video input from the HDbridge 2000 series. It offers analog and digital audio and a full size DIN connector for easy wiring and diagnostic, all in a 1RU chassis. Managing and configuring is simple, connect locally or remotely with the ethernet port, individually or in unlimited stacks through Maestro our multibox management software. The HDb2540 uses your existing coax cable saving time and money on your install, it is also compatible with any HDTV by using the built in tuner.

The LCD front panel provides device status of IP address, data rate encoding, configured RF and digital channels, and numerous other details providing convenience at your finger tips. The Maestro software allows you to configure and entire headend quickly, view status and configurations, apply a value to all channels with a few clicks, create your channel plan on one page, and much more.

 HDb2540 Features:

  • Four Component video inputs - 720p, 480p/i
  • Digital MPEG2 Encoding: Up to 36Mbps sustained average encoding rate, Audio encoded into AC-3
  • RF Modulation / Channel Upconversion: Well-formed QAM 256 6Mhz channel, inserted onto any blank channel, Independently Frequency agile from 50 to 858Mhz (Channels 2-135), Supports STD, HRC or IRC cable standards
  • Integrated Closed Caption support
  • Dimensions: 1.72" H x 17.33" W (without rack mount ears) x 9.9" D
  • Weight: 6.25lb
  • Warranty: 5 years
  • Includes: Modulator, power cord, A/V cables, and manual

Optional Cable Options:

Zv709‐6 - Hydra 6 ft AV Component/Composite Cable

Zv710-6 - 6 ft VGA & Stereo Audio Breakout Cable


Zv732‐3 - Hydra 2ft 7in. AV Cable with Satellite DIN connector



View Zeevee HDb2540 Specifications (PDF)


ISE 2013: ZeeVee Unveils HDbridge 2000 Series Encoder/Modulators ()
  • ISE 2013: ZeeVee Unveils HDbridge 2000 Series Encoder/Modulators

ZeeVee Warranties the HDb2540 4 Channel 720p HDBridge 2000 Series Component Video Encoder Modulator for 5 Years
