Sonora Design
Sonora SD SWMD2 SWM + CATV Diplexer
- SKU:
- SD SWMD2
- UPC:
- 609465600895
- MPN:
- SD SWMD2
- Availability:
- In Stock - Ships Fast!
- Shipping:
- Calculated at Checkout
MSRP:
$12.99
Now:
$9.45
Was:
— You save
$3.54
Description
Sonora SD SWMD2 SWM + CATV Diplexer
Model SD SWMD2 is used on the amplified SWM1 port to extract the MRV signal to the DECABB. The LA141R-T blocks MRV from the SWM1 port. The MRV loss from GUEST 2 to the SWM1 DECA is 32 dB. The GUEST 2 receiver input is -53 dBm from the amplified SWM1 signal.
Model SD SWMD2 provides 40 dB of isolation from “CATV+SWM” to the “SWM” port.
Related Products

Pico Macom SUB-CATV TruSpec Sub Band / CATV Diplexer Combiner Seperator
Pico Digital
MSRP:
$24.99
Now:
$12.49
Was:
Tru Spec SUB-CATV by Pico Digital Sub Band / CATV Diplexer Combiner Seperator
Features:
Separates and isolates sub-band (5~42MHz) from CATV/UHF/ VHF (54~1000MHz) signals! providing for clean...

Sonora Premium Grade Satellite Diplexer with High Isolation
Sonora Design
MSRP:
$5.99
Now:
$4.95
Was:
Model HRD2 combine separate DBS signals from terrestrial TV signals.Filtering of undesired spurious interference and noise is extremely important when working with amplified signals containing...

Sonora SD SWMD1 SWM + CATV High Isolation Diplexer
Sonora Design
MSRP:
$12.99
Now:
$8.50
Was:

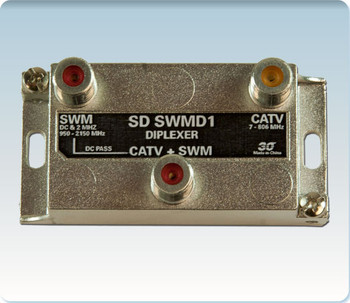

Sonora SD SWMD1 SWM + CATV High Isolation Diplexer
