PCT INTL PCT-MAB-F14P RF MoCA CATV Drop Amplifier with Passive Return

SKU:
PCT-MAB-F14P
Condition:
New
Availability:
In Stock - Ships Fast!
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • PCT International PCT-MAB-F14P RF Cable TV Amplifier with Passive Return and MoCA Filter - front view
  • PCT International PCT-MAB-F14P RF Cable TV Amplifier with Passive Return and MoCA Filter - rear view
  • PCT International PCT-MAB-F14P RF Cable TV Amplifier with Passive Return and MoCA Filter - includes everything in the picture.
  • PCT International PCT-MAB-F14P RF Cable TV Amplifier with Passive Return and MoCA Filter - front view
  • PCT International PCT-MAB-F14P RF Cable TV Amplifier with Passive Return and MoCA Filter - rear view
  • PCT International PCT-MAB-F14P RF Cable TV Amplifier with Passive Return and MoCA Filter - includes everything in the picture.
- You save $20.00
$69.99 $49.99

Description

PCT International PCT-MAB-F14P RF Cable TV Amplifier with Passive Return and MoCA Filter

The PCT-MAB-F14P active return RF amplifiers provide low noise amplification of broadband signals for subscriber drop installations. PCT amplifiers feature a lightweight powder coated and weather sealed housing for superior corrosion protection. PCT amplifiers have precision machined F ports (conforms to SCTE standards) that have gold plated beryllium copper seizure mechanisms to provide optimal distribution and amplification of your RF signals.

Features:

  • 4 port passive return with MoCA filter
  • 7dB per output
  • Lowest distortions performance available
  • IEEE 6 kV, B3 surge withstand on all F ports
  • Gold-plated, beryllium copper patented DSM® seizure technology
  • Sealed F ports conform to SCTE standards
  • Power Supply and Power Inserter Adapter Iincluded
  • RoHS Compliant

Integrated MoCA filter

  • Keeps MoCA signals within the home network and blocks them from going up the drop
  • Reduces the loss of MoCA passband frequencies (1125 to 1525 MHz) within the in-home network

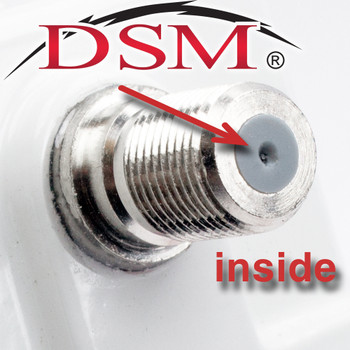

Patented DSM® seizure technology provides increased spring retention for better surface contact.

  • Patented design to increase spring retention for better surface contact-even after repeated entry across maximum to minimum center conductor diameters
  • Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and less common path distortion

Applications:

  • Distribution of video in the house for applications with multiroom DVR
  • ƒ Home high speed networking (allowing internet service, videos, and gaming to share bandwidth without loosing speed and quality)
  • ƒ High definition video streaming from the internet

Specifications:

Bandwidth: 54 to 1002 MHz
Impedance: 75 Ohms (nominal)
Return Loss: ≥18 dB
Shielding Effectiveness: -110 dB minimum
Operating Temperature: -40 to +140 °F (-40 to +60 °C)



View AllClose

Warranty Information

PCT INTL Warranties the PCT-MAB-F14P RF MoCA CATV Drop Amplifier with Passive Return for 1 Year.
