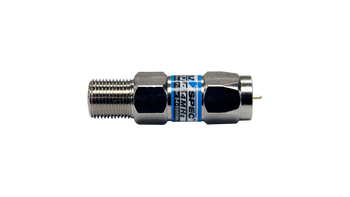

HPF-54-HR Holland Electronics High Pass Filter to Block Sub Band Signals

The Holland Electronics HPF-54-HR high pass filter attenuates ingress noise in the sub-band section of the cable spectrum to optimize return path services. This filter can also be
used to eliminate or restrict user access to the sub-band return frequencies.

Features:

• High Return Loss
• High Sub Band Rejection
• High-Performance Seizing Pin for Increased Reliability
• Small Size
• Moisture Resistant

Specifications:

• Frequency Range 54 - 1000 MHz
• Insertion Loss (54 - 1000 MHz) 1 dB Max.
• Sub Band Rejection (5 - 40 MHz) -45 dB Min.
• Return Loss (54 - 1000 MHz) 20 dB Min.
