ZeeVee HDb420 HDBridge QAM Modulator/Encoder Module with 480p Resolution

Each HDbridge module connects to a satellite or cable receiver or other component video source and converts that signal in an HD digital cable (QAM) channel that can be received by any HDTV over standard coax wiring.

Key Features

• Modules come in three resolutions – optimize value by matching the native resolution of your sources, connected by high-resolution component video (Y, Pr, Pb) connections.
• DVD Quality at 480 – with component video, even SD (480) sources deliver stunning DVD performance and full digital quality while respecting content broadcast requirements.
• Digital Audio – Dolby AC-3 pass-through or PCM encoding.
• Select broadcast channel via a simple front-panel interface – up and running in minutes.
• Integrated Closed Caption support – required for ADA compliance in many applications.
• Available HDbridge Rack Chassis holds and powers up to eight modules, and contains a prewired RF combiner and amplifier.

Features:

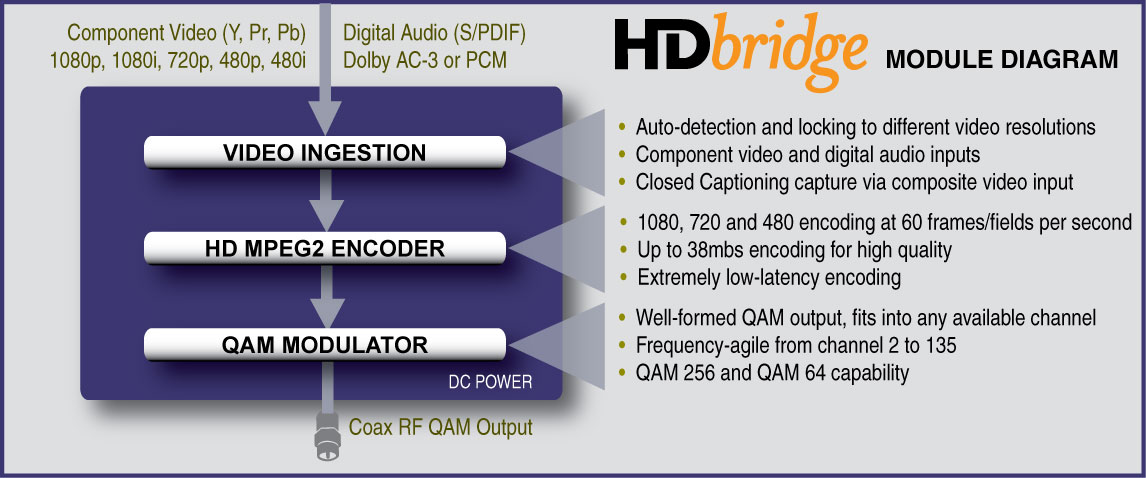

A/V Capture

• Component video input (Y, Pr, Pb)
• HDb620 - 1080p, 1080i, 720p, 480p and 480i
• HDb520 - 720p, 480p and 480i
• HDb420 - 480p and 480i
• Closed Caption support via composite input
• Digital AC-3 or PCM Audio

HD MPEG2 Encoding

• Up to 36Mbps sustained average encoding rate
• Encoding of PCM audio inputs, pass-through of encoded audio input
• Digital and Visual Watermarking for content theft prevention
• User-settable program information
• Extremely low-latency encoding

RF Modulation / Channel Upconversion

• Well-formed QAM 256 or QAM 64 6Mhz channel, inserted onto any blank channel
• Frequency agile from 50 to 858Mhz (Channels 2-135)
• Supports STD, HRC or IRC cable standards

Specifications

Inputs

• Component Video (Y, Pb, Pr) RCA connectors

Resolutions Supported

• HDb620 - 1080p, 1080i, 720p, 480p, 480i
• HDb520 - 720p, 480p, 480i
• HDb420 - 480p, 480i
• All at 59.94 frames/fields per second

S/PDIF Digital Audio

• RCA connection Optical connection
• Audio PCM encoding AC-3, ATSC A/52
• Digital Pass-through Dolby Digital©
• (AC-3) 1 to 5.1 channel

Formats

• 48K, 44.1k, 32k bit PCM
• AC-3 Pass-through

Video

• Encoder Video Profile MPEG2 HD Profile 2: ISO13802
• MP@HL (1920x1080, 1280x720)
• Video Transport Bit Rate 38.78 Mbps
• Avg Encoding Data Rate HDb620 - 35Mbs
• HDb520 - 28Mbs
• HDb420 - 14Mbs

RF Output

• Modulation Type (Americas) QAM 256, QAM 64 (ITU-T J83 Annex B)
• Cable Standards HRC, IRC, or STD (default)
• Frequency Range 50-900 MHz (channels 2-135)
• Module Output Power +25dBmV typical

Power

• DC Input +12V, 1.6A
• Radio Emissions FCC Home or Office (B)
• Temperature/Humidity Operating +32F to +104F (0C to +40C) /20% to 80%, non-condensing

Dimensions

• Physical Width 1.7 Inches
• Height 10.5 Inches
• Depth 4.75 Inches
• Product Weight 0.95 Kg (33.5 Oz.)
