ZeeVee HDb-RK1 HDbridge Rack Chassis Kit with Power Supply

Deploy up to eight HDbridge modules

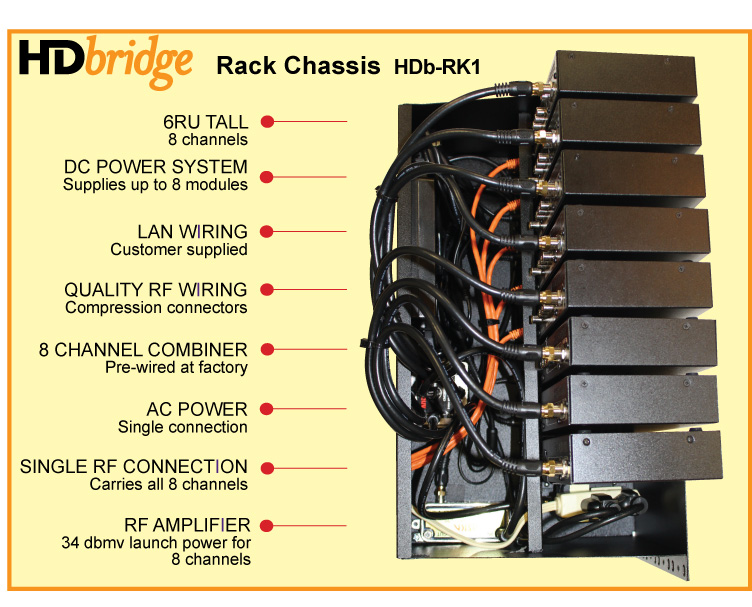

Modules are loaded in the rack chassis from the front, and are held in place by mechanical restraints and a single thumbscrew. The chassis has a single AC power connection, and provides DC power to each HDbridge module. It also contains a pre-wired 8-1 combiner and RF amplifier to deliver 34dbmv power for the combined channels. The chassis is cut low in the back, providing easy access for video and audio wiring to each HDbridge module.

Key Features

• Rapid Deployment – One AC connection, one RF connection and easy access to Video and Audio connections make deployment easy.
• Rack Efficiency – 6RU for 8 channels, and only 10 inches in depth.
• Cable Grade – High quality amplification and compression connections on all coax components.
• Economical – 190 watts total AC load for all 8 channels.
