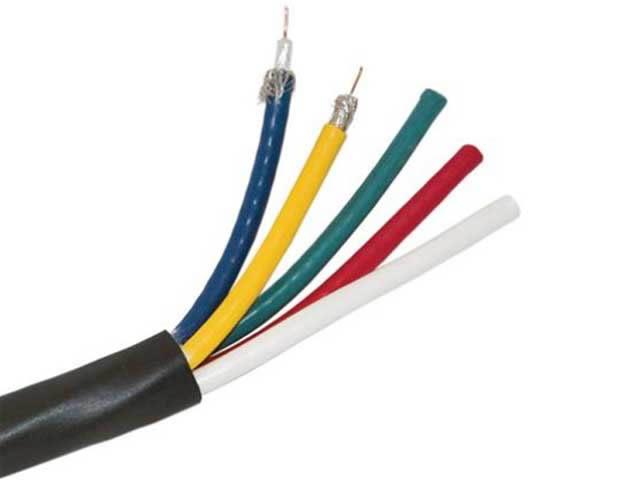

Holland RGB 5 Conductor Precision Mini Coax - 250'

Image 1
  • Image 1
Price:
$299.95
SKU:
HVS-5-250
Brand:
Holland
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:

Product Description

Holland Electronics 75Ohm Mini Coax is a quality cable that is great for making your own patch cables, jumpers, and other precision cables. This cables reduced diameter allows for much greater flexibility.

Specifications:

  • Conductor Material & Dia: 23Awg Solid Copper .0227" Nom
  • Impedance: 75 +/- 3 OHMS
  • Nom. Weight (Lbs per Ft): .006
  • Nom. Inductance: .106 MICRO-H/FT.
  • Nom. Capacitance Conductor to Shield: 16.5 PF/FT.
  • Nom. Velocity of Propagation: 83 %
  • Nom. Delay: 1.24 NS/FT.
  • Nom. Conductor DC Resistance @ 20 Deg. C: 20.1 OHMS/1000 FT.
  • Nom. Shield DC Resistance @ 20 Deg. C: 7.6 OHMS/1000 FT.
  • Max. Operating Voltage: 300 VRMS (UL)
  • Suggested Operating Temperature: -30C - +75C
  • Temperature Rating: - 30 TO +75 DEG. C
  • Min Bend Radius: 3.0 "
  • Max Pulling Tension: 36 LBS.
  • Dielectric Material & Dia: Gas Injected Foam High Density PE .102" Nom
  • 1st Shield Type: Al foil Bond Tape(R) Tape: 100%
  • 2nd Shield Type: Tinned Copper Braid 95%
  • Jacket Material & Dia: PVC .159" Nom.
